VI Package Manager (VIPM)

Using the LabVIEW Tools Network View

The LabVIEW Tools Network View allows you to browse all LabVIEW tools and addons in one single convenient location. You can sort products and search for the right tool you need to extend your LabVIEW environment.

Navigating the LabVIEW Tools Network Window

This window can be launched from the main VIPM window by:

      Selecting Window>Show LabVIEW Tools Network.

      Clicking on the  button on the main VIPM window.

      You can also launch the window from the Getting Started Window of LabVIEW 2011 or greater. See image below.

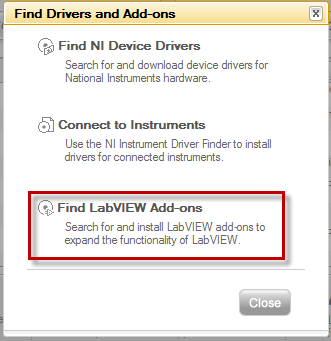

Figure 79 Launching the LabVIEW Tools Network View from the LabVIEW Getting Started Window

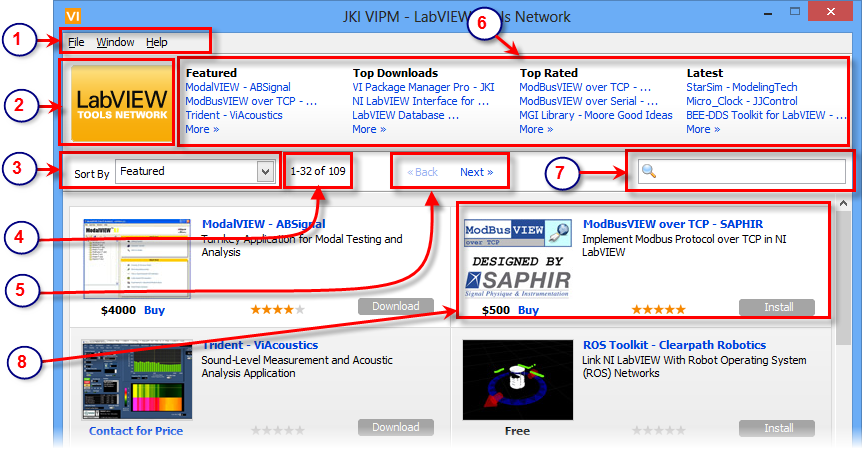

The following screenshot highlights each section of the Package Configuration Editor.

Figure 80 LabVIEW Tools Network View

1.  Menu bar

2.  Clickable Logo

3.  Sort Control

4.  Product Enumeration

5.  Page Navigation

6.  Top Lists

7.  Search

8.  Product Information

Contributing Your Own Product

The Tools Network provides a free and easy way to host your LabVIEW product. If you are interested in contributing a product, visit the LabVIEW Tools Network and click "Contribute an Add-On to the Tools Network."

Contacting NI

The LabVIEW Tools Network content is managed by National Instruments. If you'd like to give feedback or report any errors with the Tools Network, contact the LabVIEW Partner Program,


Menu Bar

Clickable Logo

Sort Control

Product Enumeration

Page Navigation

Top Lists


Product Information
