VI Package Manager (VIPM) > Using Package Configuration Editor > Menu Bar

View Menu

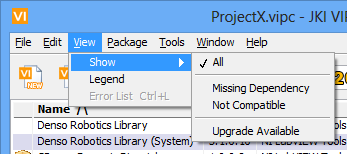

Figure 24 – PCE View Menu

Show:

All: Show all packages in the package list regardless of filter type.

Missing Dependency: Only show packages in the package list that have missing dependencies

Not Compatible: Only show packages in the package list which are not compatible with the selected LabVIEW version or operating system.

Upgrade Available: Only show installed packages in the package list that have newer versions available.

Legend: This item can toggle on (state indicated by a checkmark) the VIPM PCE legend. If the legend is already visible, then this menu item will turn the legend off. The legend is displayed in the bottom right corner of the package list.

Figure 25 - PCE Legend

Error List: This will display the PCE Error List dialog which lists any problems with the current package configuration.

Note: This menu item is only enabled if there are problems with your package configuration.


If you have any feedback or questions (including ideas for other topics you'd like to learn more about), please contact us using our support page.  We're looking forward to your feedback.
