LabVIEW 6.x

VI Package Manager (VIPM) > Appendix B: How to manually configure your LabVIEW version to allow VIPM communication.

LabVIEW 6.x

1. Open LabVIEW and launch the Options dialog from Tools > Options.

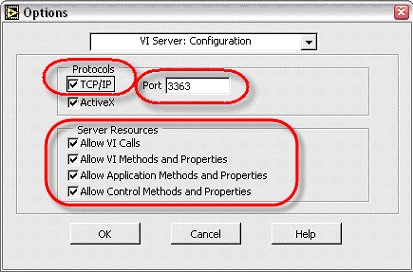

2. Go to the VI Server: Configuration category.

3. Enable the TCP/IP checkbox.

4. Enter a valid port number in the Port field (this port should match the one that you have configured in the LabVIEW Versions page of the VIPM Options Dialog).

5. Enable all the checkboxes under Server Resources.

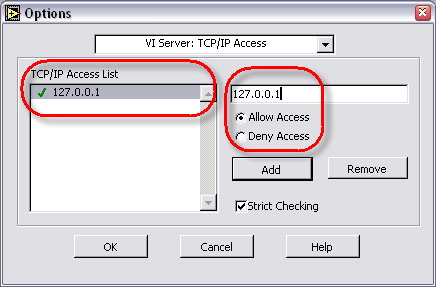

6. Go to the VI Server: TCP/IP Access category.

7. Enter your local computer IP address 127.0.0.1 in the TCP/IP Access List

8. Click OK and EXIT LabVIEW

If you have any feedback or questions (including ideas for other topics you'd like to learn more about), please contact us using our support page. We're looking forward to your feedback.
