Right-click on Empty Space

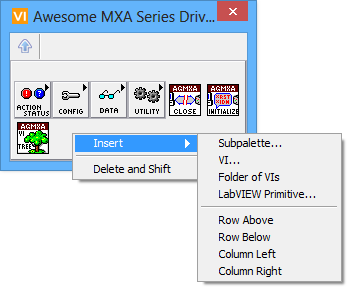

Right-clicking on empty space in a palette, as shown below, gives you several options.

Insert:

Subpalette: Presents a dialog asking you for the name of your new subpalette and then creates it.

VI: Presents a dialog asking you to locate a VI on disk and adds it to the palette.

Folder of VIs: Presents a dialog asking you to locate a folder on disk and adds its contents to the palette.

LabVIEW Primitive: Allows you to insert a LabVIEW primitive function in your palette. A dialog will pop-up where you can search for a primitive by name.

Row Above: Inserts an empty row above the item or empty space.

Row Below: Inserts an empty row below the item or empty space.

Column Left: Inserts an empty column to the left of the item or empty space.

Column Right: Inserts an empty column to the right of the item or empty space.

Delete and Shift: Deletes the item or empty space.
