Cart: Download TortoiseSVN Tool Full-Featured Demo
Note: the full-featured demo version of the JKI TortoiseSVN Tool for
LabVIEW is licensed
under the JKI Toolkits Evaluation License.
To download and install the JKI TortoiseSVN Tool for LabVIEW demo, you will need VI Package Manager (VIPM), which is made freely available by JKI. If you don't already have VIPM installed, you can get it from our website, here.
Installing the JKI TortoiseSVN Tool takes less than a minute. Here are the steps:
After VIPM completes this operation, you may see a dialog stating that there were new packages found and asking you if you want to install them. Press the No/Cancel button and proceed to the next step.
VIPM will download all required packages and begin the installation process.
During the installation process, VIPM will present you with a license agreement dialog (shown below) for the JKI TortoiseSVN Tool dialog. If you agree to the terms of the license agreement, press the "Yes" button to proceed with the installation process.
If you're new to TortoiseSVN, please refer to the Documentation to see how to get started.
To download and install the JKI TortoiseSVN Tool for LabVIEW demo, you will need VI Package Manager (VIPM), which is made freely available by JKI. If you don't already have VIPM installed, you can get it from our website, here.
Installing the JKI TortoiseSVN Tool takes less than a minute. Here are the steps:
- Update Your Package List
- Install JKI TortoiseSVN Tool
- Restart LabVIEW
- Start using the JKI Tortoise SVN Tool for LabVIEW
1) Update Your Package List
From VIPM's toolbar, press the Check the Network for Available Packages button. VIPM will connect to the Internet and update its list of all the available packages.After VIPM completes this operation, you may see a dialog stating that there were new packages found and asking you if you want to install them. Press the No/Cancel button and proceed to the next step.
2) Install JKI TortoiseSVN Tool
Find the jki_tool_tortoisesvn package in the package list (hint: type "svn" into the quick search text box to quickly find the package). Right-click on it and select the Install... right-click menu option, as shown below:)
VIPM will download all required packages and begin the installation process.
During the installation process, VIPM will present you with a license agreement dialog (shown below) for the JKI TortoiseSVN Tool dialog. If you agree to the terms of the license agreement, press the "Yes" button to proceed with the installation process.
)
3) Restart LabVIEW

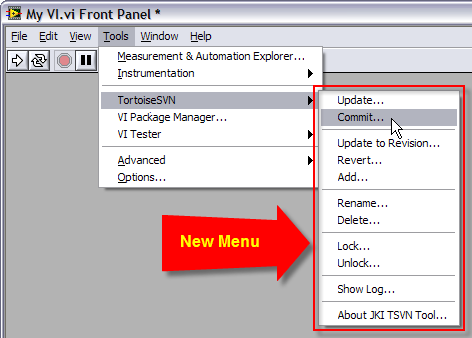

After the installation process completes, restart LabVIEW. You will be able to find the JKI TortoiseSVN Tool menu in the LabVIEW Tools menu under Tools >> TortoiseSVN (shown below).4) Start using the JKI TortoiseSVN Tool for LabVIEW
If you're already familiar with using TortoiseSVN, you can start using the JKI TortoiseSVN Tool for LabVIEW immediately. It works very much like the TSVN menu you're already accustomed to using in Windows Explorer.If you're new to TortoiseSVN, please refer to the Documentation to see how to get started.
